Complete the Quadrilateral Domino Activity

I’m teaching a geometry course at FPU this semester. I taught the same course three years ago, but my philosophy and practice have shifted so significantly in that span that I’ve scrapped what I used the first time around and am in full create-and-curate mode.

With that in mind, I’ve been frequenting Geoff Krall’s fantastic curriculum maps rather, um, frequently as of late. My latest joy-filled find: Don Steward’s Complete the Quadrilateral (via Fawn Nguyen).

Inspired by these posts—and a separate domino-style activity shared by Mike Chamberlain at a common core workshop last semester—I spent a good portion of my three-day weekend turning the complete-the-quadrilateral task into 21 dominos of self-checking goodness.

Set Up

Teachers, print this

Screen Shot 2014-02-10 at 6.21.30 PM

…and use these…

Skalm_2

…to get a stack of these…

2014-02-10 18.25.41

…which you’ll shuffle and put in one of these…

2014-02-10 18.27.34

…and hand out to groups of these:

Classroom

How to Play

Working in groups of 2-4, students will:

  • Join dots to complete the indicated quadrilateral on each domino (Multiple possibilities? Maximize the area!)
  • Determine the area and perimeter of each figure
  • Connect the domino chain, from start to finish

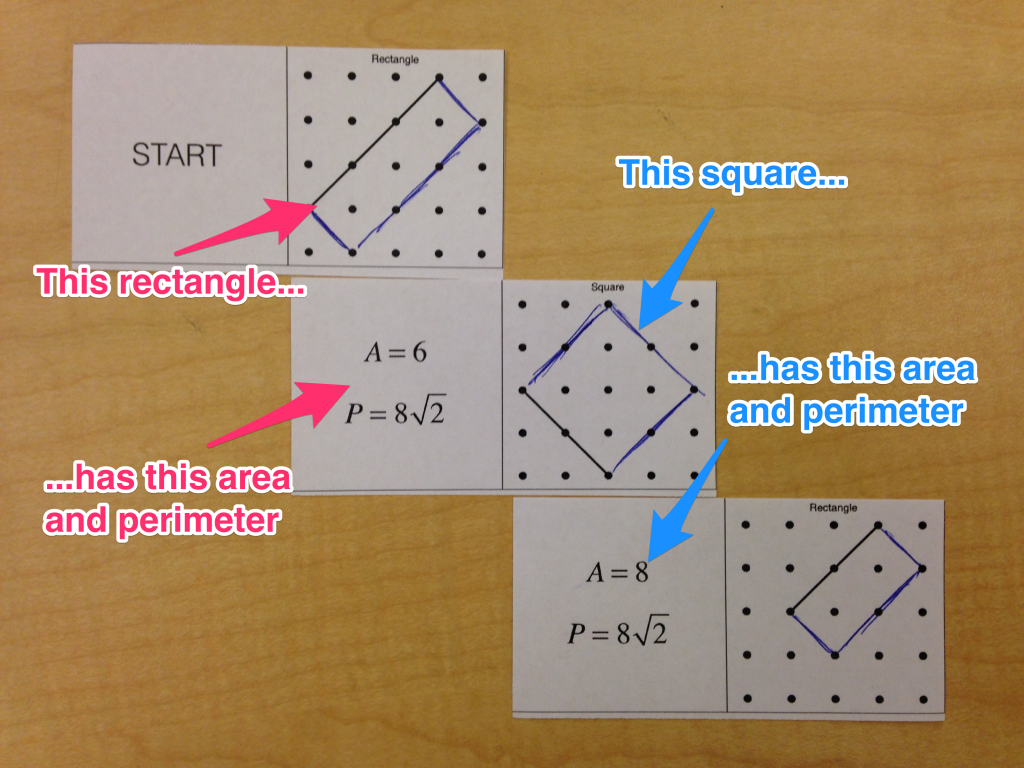

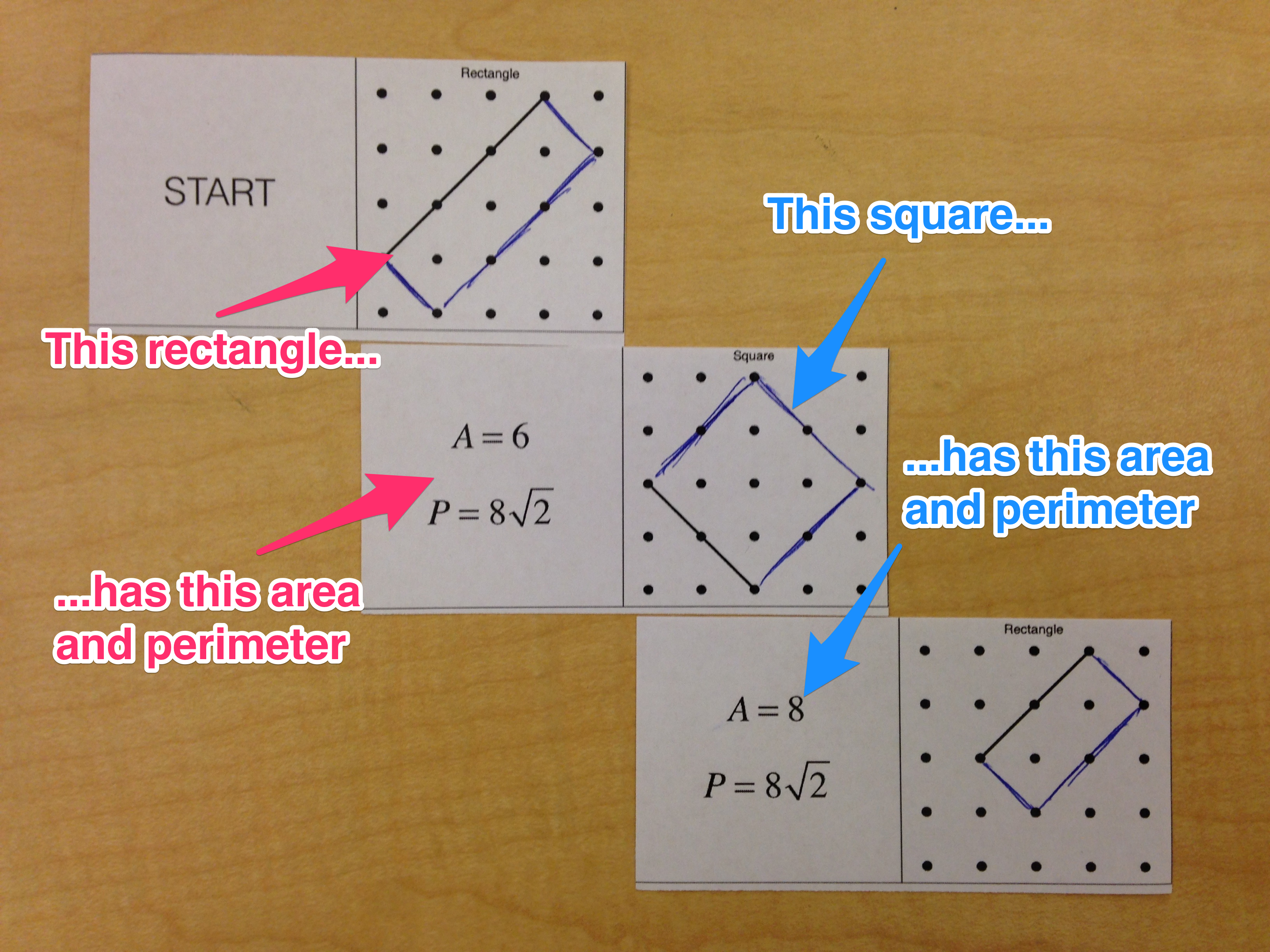

Just to clarify the whole “domino chain” bit, each domino contains one answer on the left (to a previous card’s question) and one question on the right (with an answer to follow on the next card). I’m fairly certain that last sentence doesn’t make any sense, so… “Hey-look-a-picture!”

2014-02-10_19_53_45

Solutions

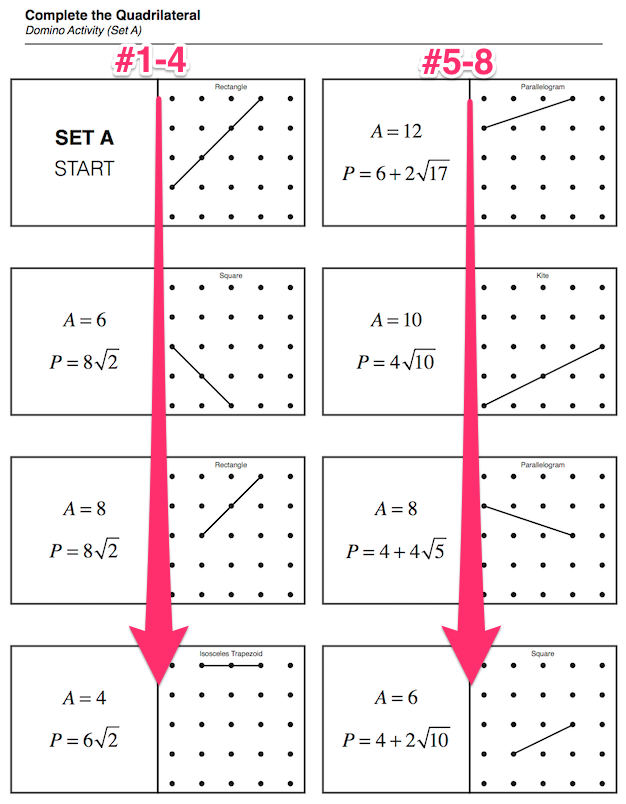

If you need a hand with completing the quadrilaterals, check out the source, or even the original source. (Note that I removed four problems—Fawn’s #9-11 and 14, due to identical figures mucking up the uniqueness of my domino chain—and that my final problem matches Don’s, not Fawn’s.) For help with the area, perimeter, and domino sequence, note that my handouts contain the dominos in order (reading one column at a time, from top to bottom):

Complete_the_Quadrilateral_Domino_Activity__Set_A__png

Variations

The teachers in my geometry class served as guinea pigs for this revamped version of the activity, and after a debriefing discussion, I think it would be wise for me to create a few variations to allow for more students to participate without becoming too overwhelmed/frustrated. (Translation: The task took a very long time, and with the four required steps—complete the quadrilateral, find the area, find the perimeter, match the domino—I’m afraid student interest will fizzle out as frustration grows.)

Here are several I’m wondering about (including one I’ve already added):

  • Split the deck into two groups of 10 dominos (Set A, a bit easier; Set B, more challenging), allowing for three levels of difficulty to differentiate between or within classes (Set A only, Set B only, Sets A and B)
  • Reduce the deck to 10 dominos, remove perimeter from consideration (if the self-checking domino action is to stay in tact, I think I should make sure I have 10 distinct areas)
  • Same as #2, but remove area from consideration (not sure if I would then make the rules “maximize perimeter” or if that’s just too awkward)

Request for Feedback

There’s a lingering fear in my mind that I took a great activity and ruined it. If you think that’s the case (or not the case), I’d love to hear why in the comments. Also, if you have any other suggestions for tweaking the length of the activity without losing its original challenge or appeal, let me know.

Comments 3

  1. Hi Michael. Wow, this was a lot of work! I love the addition of perimeter instead of just area.

    I’m not sure, however, why it’s a matching game aside from making it a matching game. My concerns are 1) If I’m reading your instructions correctly, there’s no time for individual work. This is always my first step in any task because I personally can’t think when I’m immediately put into a group. I need that quiet think time. I feel I have no ownership of the problem as I might not get to share, others are likely to think faster than I can and give the answer before I have a chance to, 2) I like the “self-checking” aspect of the domino idea, but here it also seems to allow room for guessing, “Oh, this piece must go here because it doesn’t fit anywhere else,” 3) My FAVORITE part of this activity is seeing HOW kids solve for the area — how they splice and dice up each quadrilateral was great to see — turns out many of them did this differently than I did.

    What do you think?

  2. Post
    Author

    Fawn, thanks for the feedback. A few quick replies:

    1. Great feedback! I’ve been trying to pay more attention to this over the past few months. For example, when we play a Set Game daily puzzle as a whole class, I now break our play into three stages: Search alone, search with your group, share aloud (until we have them all). I’m still trying to remember to incorporate some individual thinking time into more lessons/activities, and it slipped by me on this one.

    2. The entire motivation for the “matching game-ness” was the self-checking quality of the domino format. I hadn’t thought about how that would allow students to guess in some spots, though now that I’m thinking about it I realize that in many cases they can find area or perimeter and guess on the other, especially in my revamped versions (with 10-domino Set A and Set B). One way to avoid that would be to focus on area only in Set A and perimeter only in Set B, but not it seems like I’m trying too hard to stick with the dominos, and maybe I should just go back to the handout you (or Don) made.

    3. 🙂

    Thanks for sharing your thoughts!

  3. I like this a lot and want to steal it- I think to avoid the problems with guessing and fitting, I may just give each kid a few cards and tell him that someone else has his answer. if they complete their cards and check they can get a domino train. I may print 2 or 3 sets on different colors- to keep the chains working. Maybe this will allow for individual work, but also the self check
